• 6kV ring wave surge protection on all F ports, for lightning & over voltage events
• Zinc alloy diecast housing and backplate for superior housing RFI protection
• 15 psi sealed SCTE compliant F-ports, insuring water tight integrility
• Nickel alloy plating for the highest level of corrosion resistance in all environments.
• Not For Satellite Use

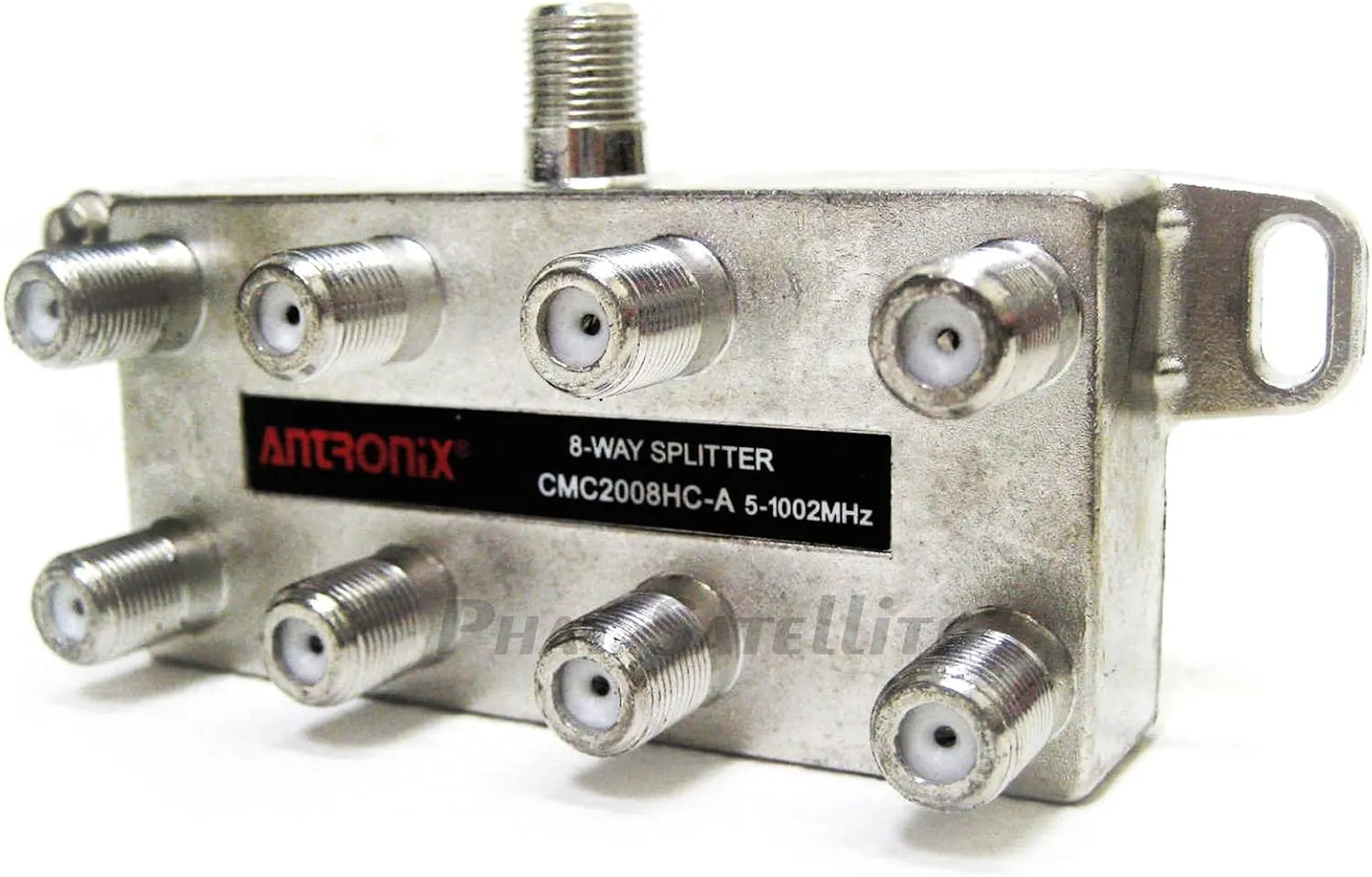

Features & BenefitsReliability, quality and performance define the Antronix CMC2000 series digital splitter. These horizontal and vertical digital splitters have been designed specifically for today’s two-way broadband networks.

• 6 kV Ring Wave Surge Protected: All ports are protected against multiple 6 kV ring wave surges per IEEE specification C62.41 Category A3.
• Digital Broadcast & HDTV Ready: Compatible with existing and future networks.
• Flat 1 GHz Bandwidth with Minimal Insertion Loss: Supports present and future multimedia applications including video, data and telephony.
• Zinc Alloy Diecast Housing & Backplate w/ Proprietary Nickel Alloy Plating: Superior corrosion resistant plating combined with a diecast backplate protects the back of the housing where corrosion is more prominent.
• 100% Soldered Back: Ensures repeatable 120 dB RFI shielding.
• 1 inch Port-to-Port Spacing Flat 15 psi Sealed, SCTE Compliant F-Port: Prevents water migration in to the splitter and ensures an excellent ground connection.
• UV Resistant Label
• Operating Temperature: -40 degree to 60 degree Celsius
• NOT FOR SATELLITE USE
